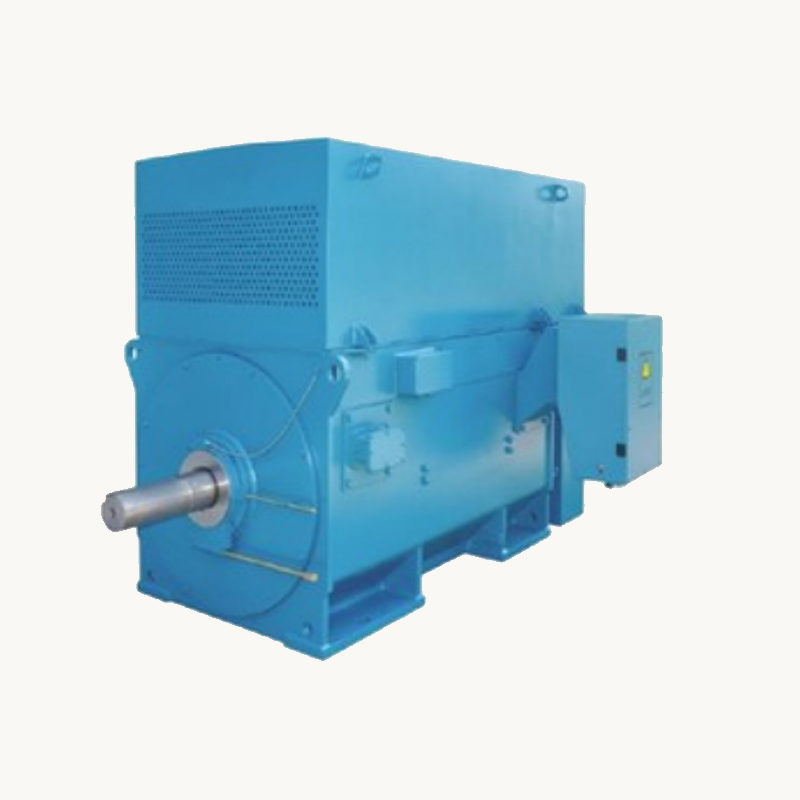

YKK,YXKK SERIES 6KV,10KV HIGH-VOL TAGETHREE-PHASE ASYNCHRONOUS MOTORS

The YKK and YXKK series 6kV and 10kV high-voltage squirrel cage rotor three-phase asynchronous motors areenclosed sauirel cage cast aluminum rotor motors with air air coolers produced usina the latest domestic hioh-voltagemotor design technology. its protection level is IP44 or lP54 (see GB4942.1), and the cooling method is 1C611 (seeGB/T1993).This series of motors has the characteristics of high efficiency, energy conservation, low noise, lowvibration, light weight, reliable performance, convenient installation and maintenance, and has good insulation andmoisture resistance. lt can be directly used in 6kV and 10kV power grids without the need for intermediate transformerequipment.Suitable for driving various mechanical equioment driven by couplinas, such as ventilators, compressorswater pumps, crushers, cutting machines, and other equipment, and can be used as prime movers for the coal miningmachinery industry, power plants, and various industrial and mining enterprises.The structure and installation type ofthis series of motors is lMB3, and the rating is based on the continuous duty system (S1) as the continuous rating. Therated frequency is 50Hz, and the rated voltage is 6kV and 10kV. lf the user has special reguirements, they can bemutually agreed upon during the ordering process.
